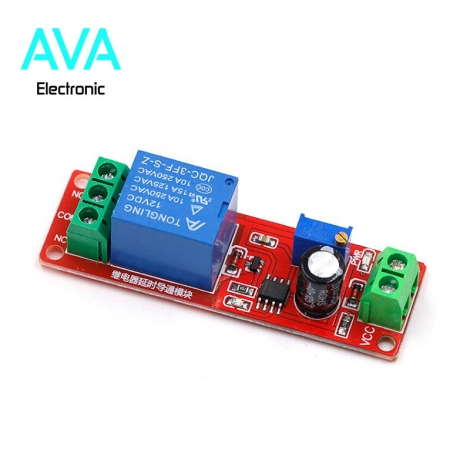

ماژول رله تایمر دار 12 ولت با تراشه NE555

ماژول رله تایمر دار ۱۲ ولت با تراشه NE555

37,000 تومان

موجود در انبار

شناسه محصول: 34604020 دسته: برچسب: ,

توضیحات محصول

This NE555 Delay Monostable Switch Module item is a timer switch module, based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.
This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.
Specifications & Features of NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module:-
  • Module based on the NE555 chip.
  • Input voltage: DC 12V
  • Adjustable time: 0-10 s
  • AC Control voltage: 250V/max. 10A
  • DC Control Voltage: 30V/max. 10A
  • Max. load: 2200W
  • Precision Pulse Generation / Timing.
  • Monostable Operation.
  • Standby no power consumption
  • Excellent temperature stability of 0.005%/°C
