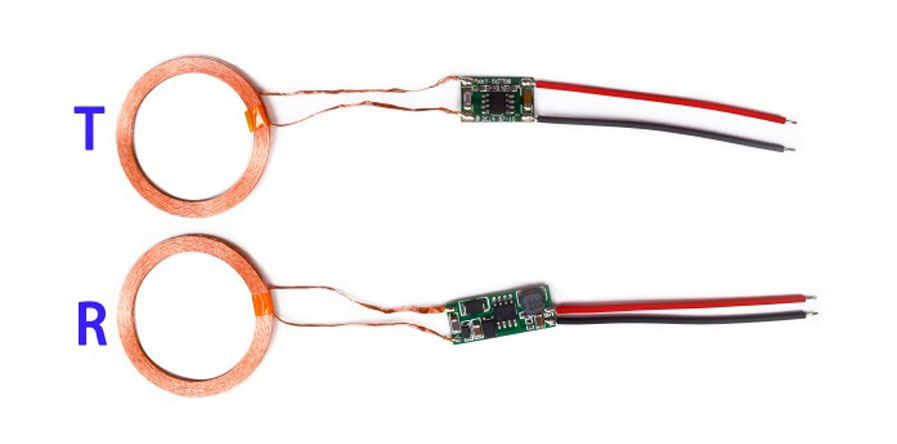

This wireless charger set comes with a transmitter and a receiver. The transmitter module can accept 9-12V input power, and wirelessly transfer the power to the receiver module. On the receiver side, it can output up to 1A 5V power. It is a suitable wire charging solution for small phone, gamepad, fish tank, MP4, and other projects.
Note: Please don’t use 12V above power for input.
- Transmitter Input: 5-12V
- Receiver Module Maximum Output: 1A 5V
- Wireless Transmitting Distance: 1 – 20mm
- Transmitter and Receiver Coil Dimension: Outer Diameter: 38mm, Inner Diameter: 29.7mm, Ring: 3.86mm, thickness: 1.43mm
- Transmitter PCB Dimension: 16.8 x 10.8 mm
- Receiver PCB Dimension: 24.3 x 10.0 mm
- Transmitter Module Total Weight: 4g
- Receiver Module Total Weight: 4.3g
