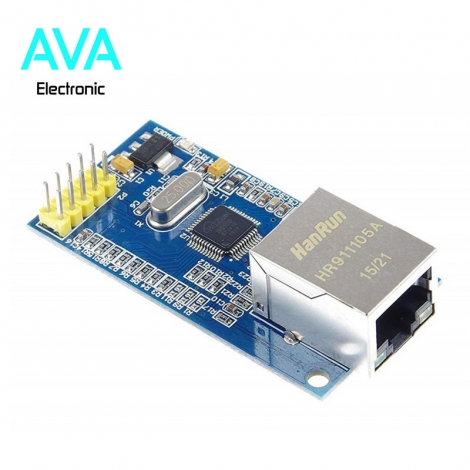

ماژول شبکه W5500 دارای ارتباط SPI

ماژول شبکه W5500 دارای ارتباط SPI

154,800 تومان

در انبار موجود نمی باشد

شناسه محصول: 34604530 دسته:

توضیحات محصول

Description:
The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded.
SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module has 8 independent ports run at the same time, Module supports 3.3V or 5V power supply, convenient for the user to use in the SCM system different, module and MCU system communication mode is SPI protocol.  Support SPI clock frequencies up to 80M, provide STM32 and 51 SCM client, server, three modes of UDP routines.

Features:
Chip type: W5500
Supports both 3.3V & 5V.
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
۱۰BaseT/100BaseTX Ethernet PHY embedded
Supports automatic response (full duplex/half duplex mode)
Supports 8 independent sockets simultaneously
Internal 32Kbytes Memory for Tx/Rx Buffers
Power off mode: support
Network wake: support
SPI interface (SPI MODE 0, 3), convenient connection with MCU
