Working frequency range: 2400-2525MHz (adjustable through software)

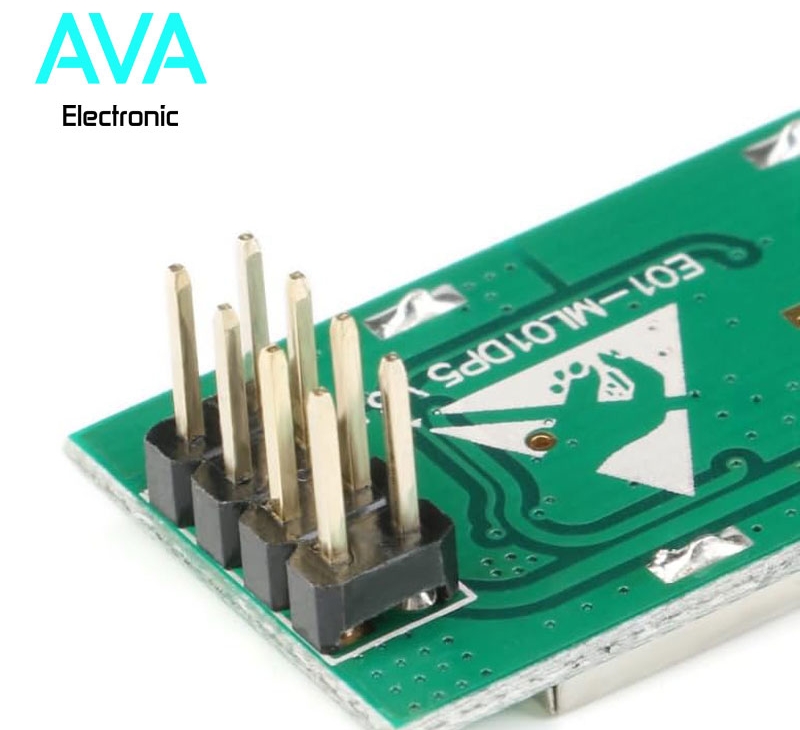

Interface method: 2 * 4 * 2.54mm (plug-in type)
Power supply voltage: 2.0-3.6V DC (note: above 3.6V voltage, it will cause permanent damage to the module)
Communication level: 0.7VCC-5V (VCC refers to the module power supply voltage)
Measured distance: approximately 2100m (clear and open, maximum power, antenna gain 5dBi, altitude greater than 2m, 250k airspeed)
MAX power: ≤ ۲۰dBm (approximately 100mW)
Airspeed: Level 3 adjustable (250kbps.1Mbps, 2Mbps)
Shutoff current: 1.0uA (nRF24L01P set to power off, CE low level)
Emission current: 130mA@20dBm
Receiving current: 20mA (CE=1)
Communication interface: SPI (up to 10Mbps)
Transmission length: 32 bytes maximum for a single packet, level 3 FIFO
Receive length: 32 bytes maximum for a single packet, level 3 FIFO
Antenna interface: SMA-K (external thread and internal hole)
Working temperature: -40~+85 ℃
Working humidity: 10%~90% relative humidity, non-condensing
Storage temperature: -40~+125 ℃
Receiving sensitivity: -106dBm@250kbps
Module size: 18 * 33.4mm (excluding SMA)
