ماژول پاور بانک دارای نمایشگر LCD با دو خروجی 1A و 2.1A

ماژول پاور بانک دارای نمایشگر LCD با دو خروجی ۱A و ۲٫۱A

253,200 تومان

موجود در انبار

شناسه محصول: 24141037 دسته: انواع پاور بانک شارژر و تستر باتری برچسب: پاور بانک

توضیحات
نظرات (0)

توضیحات محصول

Description:

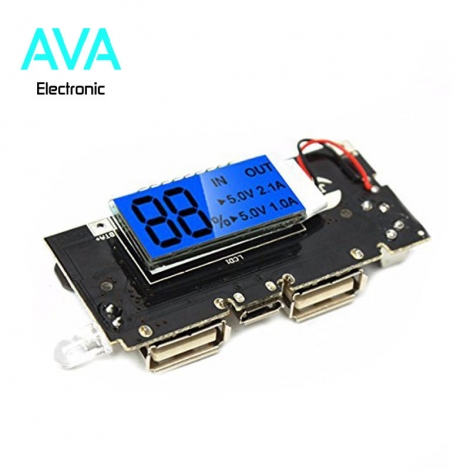

This is the mobile power module accessory, 18650 circuit board shell.

Meet your home improvement needs, but you need to understand basic electronic assembly.

Characteristics:

Motherboard comes with protection function: charge overcharge protection, overdischarge protection, overcurrent protection.

Smart output device after full charge, automatically stop charging to prevent cell phones from overcharging.

Output voltage and current stable, will not harm user devices.

Technical specifications:

Micro USB Eingang: 5V 1A

USB output: 5V 2.1A / 5V 1A (dual USB interface)

Charge indicator: intelligent digital display

Batteries Type: Liquid lithium-ion batteries (18650)

Product size: 57mm x 28mm

Screen size: 27mm x 17mm

Installation Guide:

The circuit board is connected to the battery negatively B-, B + is the positive, do not connect reversed, connection reversed will burn the board, the battery is welded in parallel, assembly battery. Note that the insulation between the battery and the circuit board, battery do not touch the circuit board so as not to cause a short circuit.

Delivery content:

۱ x Mobile Power Bank 18650 Charger Circuit Board
