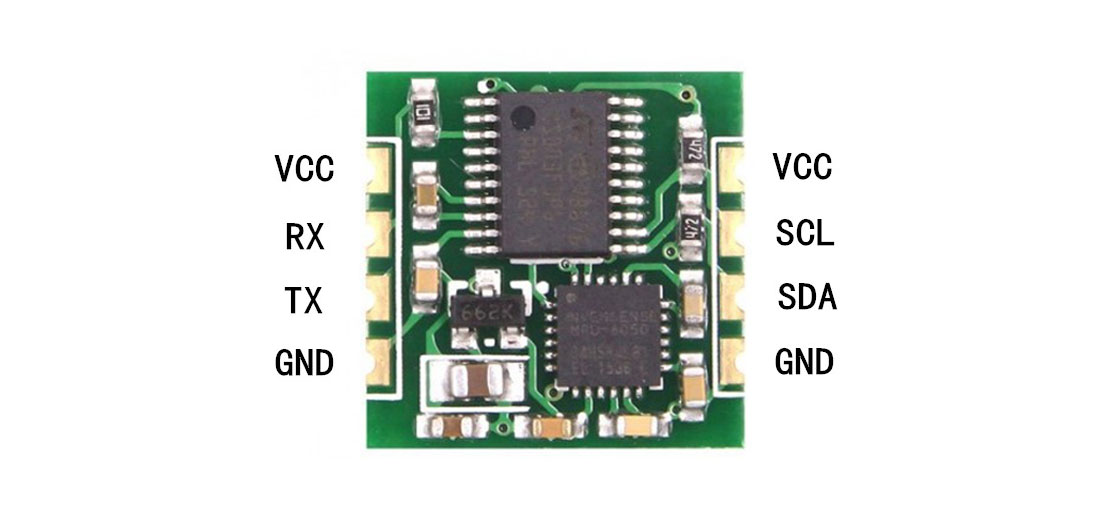

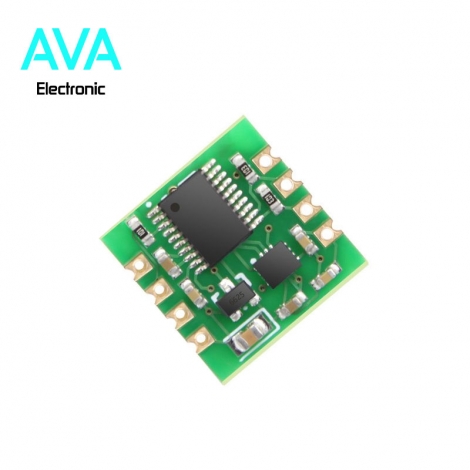

ماژول IMU شش محوره MPU6050 با فیلتر کالمن

ماژول IMU شش محوره MPU6050 با فیلتر کالمن

114,000 تومان

در انبار موجود نمی باشد

شناسه محصول: 34606017 دسته: برچسب:

توضیحات محصول

Specification
voltage: 3V ~ 6V
Current: <10mA
Size: 15.24mm X 15.24mm X 2mm

Pad pitch: down 100mil (2.54mm), about 600mil (15.24m)
Measuring dimensions: Acceleration: 3-dimensional angular velocity: 3-dimensional,attitude angle: 3-dimensional
Range acceleration: ± ۲g, angular velocity: ± ۲۵۰ ° / s.
Resolution: Acceleration: 6.1e-5g, the angular velocity: 7.6e-3 ° / s.
Stability: Acceleration: 0.001g, angular speed 0.02 ° / s.
Attitude measurement stability: 0.01 °.
Data output frequency 1:00Hz (baud 115200) / 20Hz (9600 baud).
Data Interface: Serial (TTL level), I2C (directly connected MPU6050, no gesture output)
baud:115200kps/9600kps.

Applications
BlurFree™ technology (for Video/Still Image Stabilization)
 AirSign™ technology (for Security/Authentication)
TouchAnywhere™ technology (for “no touch” UI Application: Control/Navigation
MotionCommand™ technology (for Gesture Short-cuts)
Motion-enabled game and application framework
InstantGesture™ iG™ gesture recognition
Location based services, points of interest, and dead reckoning
Handset and portable gaming
Motion-based game controllers
۳D remote controls for Internet connected DTVs and set top boxes, 3D mice
Wearable sensors for health, fitness and sports
Toys
