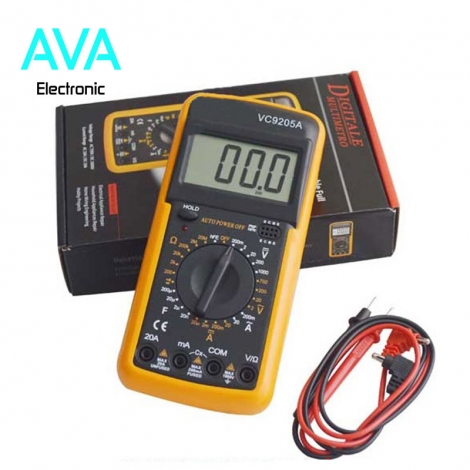

Yaxun Multi-Meter Digital Multimeter YX-9205A +
The Multitester, now known as a multimeter, has for many years been one of the greatest allies of electronics professionals, technicians and amateurs in their repair and maintenance. If you are looking for a tool that will make your maintenance more secure and accurate, then know the Yaxun YX-9205A + Digital Meter and Meter and sure to buy an accurate and economical product.
This incredible equipment has a selector of scales with Voltage (V) (Alternate or Continuous), Current (A) (Alternate or Continuous), Capacitance (F), Resistance (O), Continuity and Diode in transistor (hFE), having 32 predefined scales.
It has a “POWER” button to activate it, which is directly connected to the “Auto Power Off” function, where your operator no longer needs to worry about wasting the battery, ie after about 10 minutes automatically.
In addition, the digital multimeter has the “HOLD” button with the data hold function, ie it is used to store (lock) the value of the last measurement on the display for all notes or observations.
The operating panel also has 8 small “hFE” terminals (holes) to perform gain measurements on transistors.
– Its design consists of an incredible digital display, one size larger than the others and also slightly inclined to the user, for easy viewing of the data.
This multimeter / meter also has a support at the back of its structure that maintains an angle of approximately 120 ° from the surface, which will make it more objective and efficient to visualize the values on your screen.
– Measures voltage, current, capacitance, resistance, continuity and diode;
– Gain test on transistors;
– It has a digital display of differentiated size;
– Large LCD screen with 4 digits, maximum reading 1999;
– “HOLD” button to store values (lock);
– Automatic shut-off function;
– audiovisual signal for electrical continuity;
– Low battery warning;
– Support support.
– DC voltage: 200mV-1000V ± (۰٫۵% + ۱dgt);
– AC voltage: 200mV-700V ± (۰٫۸% + ۳dgt);
– DC current: 2mA-10A ± (۰٫۵% + ۱dgt);
– AC current: 2mA-10A ± (۱٫۰% + ۳dgt);
– Resistance: 200O-200MO ± (۰٫۸% + ۱dgt);
– Capacitance: 20nF-200μF ± (۴٫۰% + ۳dgt);
– Power supply: 9V 6F22 battery (included);
– Maximum value of the digits: 1999;
– Screen dimensions: 60 x 31.5 mm (LxW);
– Dimensions of the equipment: 180 x 86 x 35mm (LxWxH);
