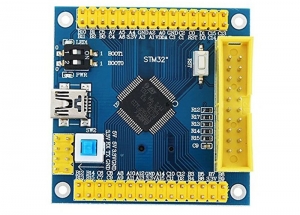

هدر برد STM32F103RCT6

هدر برد STM32F103RCT6

428,400 تومان

در انبار موجود نمی باشد

شناسه محصول: 36407022 دسته:

توضیحات محصول

Description:

۱٫ Core: ARM 32-bit Cortex-M3 CPU up to 72MHz operating frequency.
۲٫ Memory: 256K bytes of program memory(ROM); 48K bytes of SRAM;
۳٫ Clock: Built-in factory-calibrated 8MHz and 40KHz RC oscillator with 32kHz RTC oscillator calibration;
۴٫ Reset: power on/off reset (POR/PDR), programmable voltage monitor(RVD);
۵٫ Power Management: 2.0-3.6V power supply and I/O pins;
۶٫ Low power consumption: sleep, shutdown and standby mode, VBAT for the RTC and backup register power;
۷٫ AD: Two 12-bit analog-to-digital converters, 1us conversion time(up to 21 input channels), conversion range:0 -3.6V, three times the sampling and hold function, the internal temperature sensor;
۸٫ DMA: 7-channel DMA controller with supported peripherals: timer, ADC, SPI, I2C and USART;
۹٫ Debug mode: serial single-wire debugging (SWD) and JTAG interface, Cortex-M3 embedded tracking module(ETM);
۱۰٫ IO: 51 multi-function bidirectional I/O port, all I/O port can be mapped to 16 external interrupts; almost all ports can tolerate 5V signal;
۱۱٫ Timers: three Universal timers and one Strengthen timer;
۱۲٫ Up to two I2C interfaces(support SMbus/PMBus)
۱۳٫ Up to three USART interfaces
۱۴٫ Up to two SPI interfaces(18M bit/s), two can be reused
۱۵٫ CAN interface (2.0B active)
۱۶٫ USB 2.0 full-speed interface

هدر برد STM32F103RCT6

Feature:

۱٫ Matching chip for the STM32F103RCT6, F103 series for the relatively sufficient resources in the relevant chip, with 256K FLASH/ 48K SRAM
۲٫ On-board 8M external crystal can be multiplied to 72M speed, on-board RTC crystal.
۳٫ Power supply support USB data cable power supply
۴٫ On-board standard JIAG interface, support a variety of simulation access, JLINK/STLINK access
۵٫ IO all lead and the corresponding pin at the label, you can freely expand the circuit
۶٫ On-board RTC button battery holder, the installation of the battery, can provide MCU-RTC power to maintain and backup


دانلود دیتاشیت
