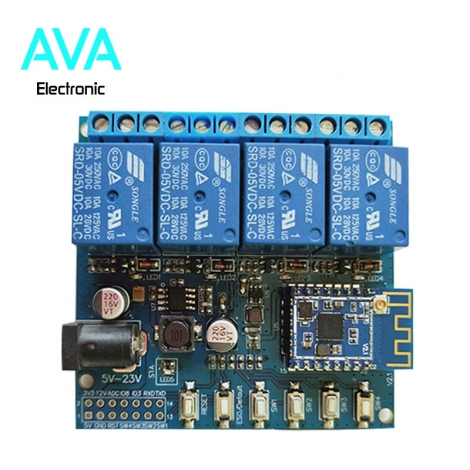

Product characteristics：

•       Service voltage DC5-24V Input wide voltage；

•       Relay output contact isolation；

•       Output 4-way relay, each path can be set to one of two working modes:normal and click

•       Each path have a separate keyswitch；

•       The master control is the high performance-price ratio embedded serial port WIFI transmission module HLK-M50;

•       Support multiple platforms such as Android、IOS and PC end

•       Each path can be set timing and up to 10 groups

•       Rich connection mode and distribution mode, support AP direct connection, support LAN and remote control, support AP distribution network and one-click configuration；

Hardware parameters

Input power：۵-۲۳V

Input current：۲A

Relay max input voltage：۲۲۰v

Relay max input current：۱۰A

Input and output：۴ outputs

Packing List :
