Argon Wi-Fi development board can act as a standalone Wi-Fi endpoint. It is based on the Nordic nRF52840 and has built-in battery charging circuitry so it’s easy to connect a Li-Po and deploy local network in minutes. The Argon is great for connecting projects to the Particle device cloud or as a gateway to connect an entire group of local endpoints.
- Espressif ESP32-D0WD 2.4G Wi-Fi coprocessor, on-board 4MB flash for ESP32
- Nordic Semiconductor nRF52840 SoC, ARM Cortex-M4F 32-bit processor at 64MHz
- On-board additional 4MB SPI flash

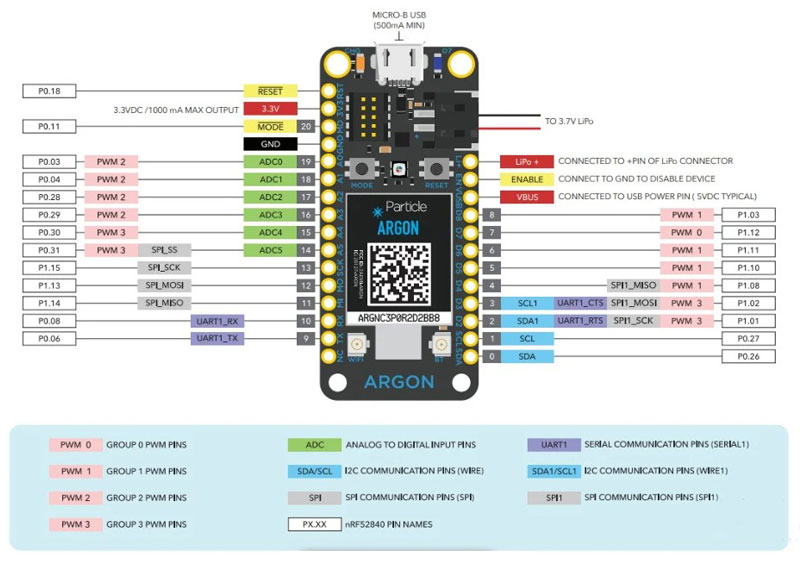

- ۲۰ mixed signal GPIO (6 x analogue, 8 x PWM), UART, I2C, SPI
- Micro USB 2.0 full speed (12Mbps)
- Integrated Li-Po charging and battery connector
- JTAG (SWD) connector, RGB status LED FCC, CE and IC certified
- Reset and mode buttons
- On-board 2.4GHz PCB antenna for thread/BLE (does not support Wi-Fi)
- Two U.FL connectors for external antennas (one for thread/BLE, another for Wi-Fi)
