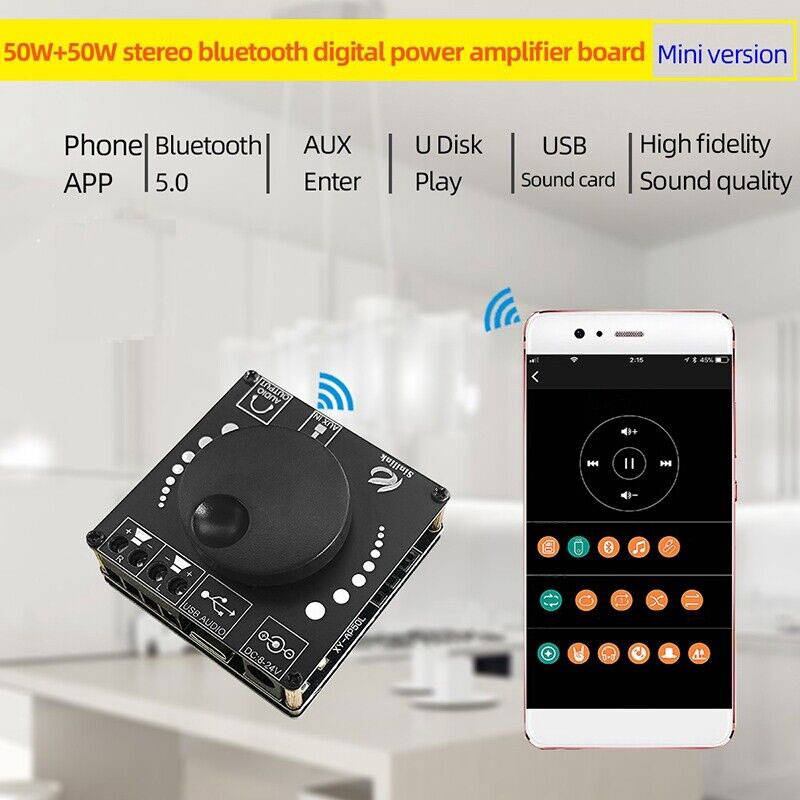

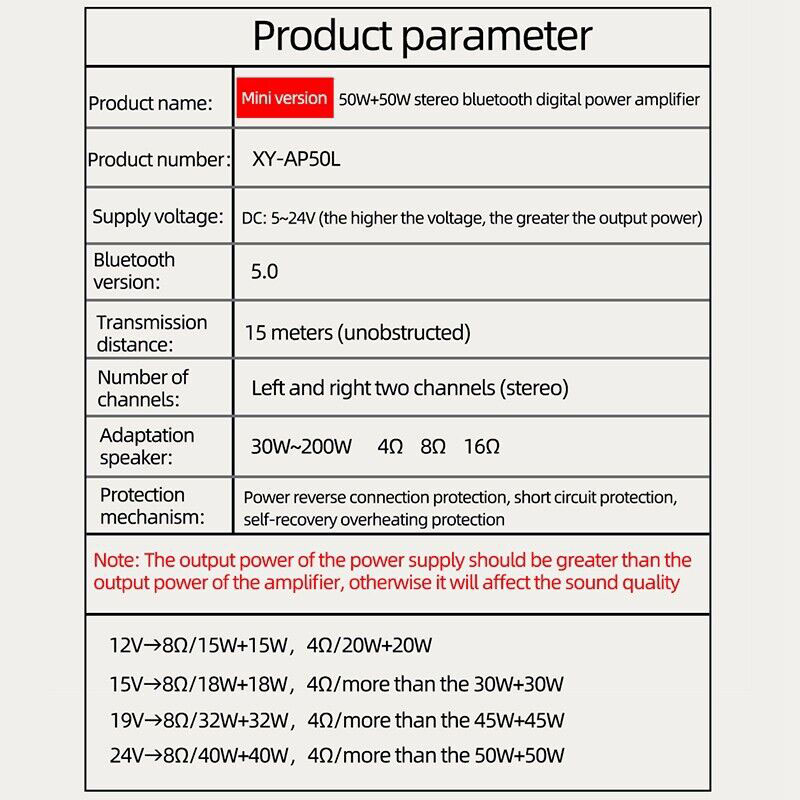

Name: 50W+50W stereo bluetooth digital power amplifier board
Model:XY-AP50L
Supply voltage: DC5-12V/24V (the higher the voltage, the greater the output power)
Transmission distance: 15m
Bluetooth version: 5.0
Number of channels: left and right channels
Adapted speakers: 30W-200W 4 ohms 8 ohms 16 ohms
Colour:Black
Material:plastic
Size:52x52x16mm

Package Contents:
۱* ۵۰W+50W stereo bluetooth digital power amplifier board
Precautions for use:
۱٫ Use the power amplifier board as far as possible from the WIFI signal (router)
۲٫ The recommended power supply voltage is DC 5~12V/24V, if it exceeds 26V, the chip will burn.
۳٫ The power supply current is recommended to be above 2A.
۴٫ The speaker cable should be too long, and that it is suitable within 1 meter
۵٫ Pay attention to static electricity protection. Before touching the power amplifier board, you must first release the static electricity on your hands to avoid static electricity from breaking down the chip. Bluetooth chips are more sensitive to static electricity.
۶٫ It is recommended to adapt the speaker with a rated power of 40W and above to avoid the speaker from heating and burning
