Features:
۱٫ Power display, voltage display, with double UsB port
۲٫ With its own switch, standby low power consumption
۳٫ Simple wiring, two wires can be connected to the positive and negative battery poles
۴٫ Snap-on installation without screws, waterproof surface, with waterproof plugs
۵٫LCD high-definition display
Product Overview

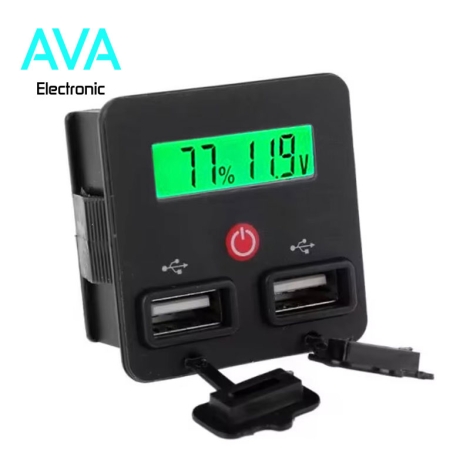

JS-CU3 has a power display, voltage display, with DC-DC double UsB port 5V output 2.5A, comes with a switch to close the DC circuit, standby ultra-low power consumption. Full enclosure surface with waterproof ability. Simple wiring, two wires can be connected to the battery positive and negative poles. Suitable for lithium batteries 3/6 series Voltage 12V-24V (product voltage, battery specifications universal adjustable)
Product Parameter
Installation size: 42*38.5mm (1.65*1.51in)
Cable length: 5cm (1.95in)
Input voltage: DC12-24V (adjustable)
USB voltage: 4.8~5.05V
USB current: 0~2.5A (dual-port shared)
Sleep power consumption: 15-20uA
Voltage accuracy: +/-0.1V
Operating temperature: -15~60℃
Suitable for lithium batteries: 3 /6 series (adjustable)
JS-CU3 has a power display, voltage display, with DC-DC double UsB port 5V output 2.5A, comes with a switch to close the DC circuit, standby ultra-low power consumption. Full enclosure surface with waterproof ability. Simple wiring, two wires can be connected to the battery positive and negative poles. Suitable for lithium batteries 3/6 series Voltage 12V-24V (product voltage, battery specifications universal adjustable)
Product Parameter
Installation size: 42*38.5mm (1.65*1.51in)
Cable length: 5cm (1.95in)
Input voltage: DC12-24V (adjustable)
USB voltage: 4.8~5.05V
USB current: 0~2.5A (dual-port shared)
Sleep power consumption: 15-20uA
Voltage accuracy: +/-0.1V
Operating temperature: -15~60℃
Suitable for lithium batteries: 3 /6 series (adjustable)
Instructions for use
۱٫ First confirm their own battery specifications and meter correspondence, in order to accurately measure the amount of power, otherwise only the voltage is accurate
۲٫ Use the product comes with S0CM wire, red positive and black negative connection to measure the positive and negative poles of the battery
۳٫ The power indicator has been energized and can work normally, displaying the current battery level.
۴٫ Power work at the same time the USB is in standby mode, you can charge the phone
۵٫ The switch on the product can close the power meter and close the USB synchronously.
۱٫ First confirm their own battery specifications and meter correspondence, in order to accurately measure the amount of power, otherwise only the voltage is accurate
۲٫ Use the product comes with S0CM wire, red positive and black negative connection to measure the positive and negative poles of the battery
۳٫ The power indicator has been energized and can work normally, displaying the current battery level.
۴٫ Power work at the same time the USB is in standby mode, you can charge the phone
۵٫ The switch on the product can close the power meter and close the USB synchronously.
