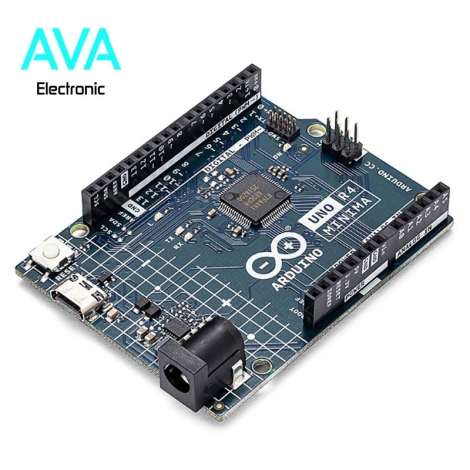

Description of Arduino Uno R4 Minima  :

The Arduino Uno R4 Minima represents an evolution of the classic Arduino Uno development board, upgrading the 8-bit AVR microcontroller to a 32-bit Arm Cortex-M4 while retaining the same form factor. This allows enhanced performance and memory in a familiar package compatible with existing Arduino shields and accessories.

At the heart of the board lies the Renesas R7FA4M1AB3CFM#AA0 microcontroller, containing a 48MHz Arm Cortex-M4 processor with floating point unit and 256KB of flash memory. This provides approximately 8 times more flash and 16 times more SRAM compared to the Atmega328P found on the Uno R3.

The R7FA4M1AB3CFM#AA0 microcontroller features a 12-bit ADC, on-chip touch sensing, multiple serial interfaces, DMA controllers, and more capabilities. The Uno R4 Minima runs at 5V, ensuring compatibility with shields assuming a 5V logic level. Power can come via the USB-C port, barrel jack or VIN pin, with an on-board buck converter stepping higher voltages down to 5V.

‌

Specification:

• Microcontroller : Renesas RA4M1 (۳۲-bit ARM Cortex-M4)
• Operating Voltage : 5 V
• Input Voltage : 6-24 V
• Digital I/O Pins : 14
• PWM Digital I/O Pins : 6
• Analog Input Pins : 6
• DC Current per I/O Pin : 8 mA
• Clock Speed : 48 Mhz
• Flash Memory : 256 KB
• SRAM : 32 KB
• USB : USB-C
• DAC (12 bit) : 1
• SPI : 2
• I²C : 2
• CAN : 1
• Op amp : 1
• SWD : 1
• RTC : –
• Qwiic I²C connector : –
• LED Matrix : –
• LED_BUILTIN : 13
• Dimensions : 68.9 x 53.4 mm

Arduino Uno R4 Minima applications:

• Beginner projects, prototyping
• Board for educational courses
• Building basic IoT systems
• Programming exercises and challenges
• Robotics projects using servo motors
• Home automation systems with sensors
• Smart device projects using Bluetooth/WiFi
