توضیحات محصول

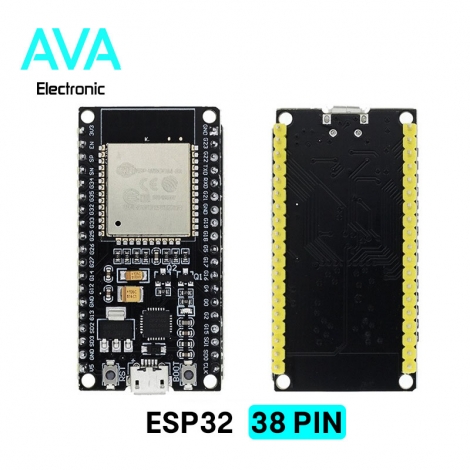

برد توسعه ESP32 دارای بلوتوث و Wifi مدل ۳۸ پایه در واقع نسل تکامل یافته ESP۸۲۶۶ است که بارزترین تفاوت آن بلوتوث داخلی آن می باشد .  دارای هسته وافای ۲,۴ گیگا هرتز و بلوتوث داخلی تولید شده با تکنولوژی ۴۰ نانومتری شرکت TSMC می باشد این برد وای فای دارای بهترین پرفورمنس در مصرف انرژی است.

Introduction

The ESP-WROOM-32 is a universal Wi-Fi+BT+BLE MCU module that is powerful and versatile for low-power sensor networks and demanding tasks such as voice coding, audio streaming and MP3. Decoding and so on. The core of this module is the ESP32-D0WDQ6 chip*, which is scalable and adaptive. Two CPU cores can be individually controlled or powered up. The clock frequency can be adjusted from 80 MHz to 240 MHz. The user can power off the CPU and use the low-power coprocessor to continuously monitor the state change of the peripheral or whether certain analogs exceed the threshold. The ESP32 also integrates a wide range of peripherals including capacitive touch sensors, Hall sensors, low noise sense amplifiers, SD card interfaces, Ethernet interfaces, high speed SDIO / SPI, UART, I2S and I2C.

Specification

The ESP32-D0WDQ6 has two low-power Xtensa® ۳۲-bit LX6 MCUs. On-chip storage includes:
• ۴۴۸ KB of ROM for program startup and kernel function calls.
• ۵۲۰ KB of on-chip SRAM for data and instruction storage.
• ۸ KB of SRAM in the RTC, RTC slow memory, which can be accessed by the coprocessor in Deep-sleep mode.
• ۸ KB of SRAM in the RTC, RTC Express Memory, which can be used for data storage and access by the host CPU during RTC startup in Deep-sleep mode.
• ۱ kbit eFuse, of which 256 bits are system specific (MAC address and chip settings); the remaining 768 bits are reserved for user applications, including Flash encryption and chip ID.
• ESP-WROOM-32 integrates 4MB of SPIFlash
