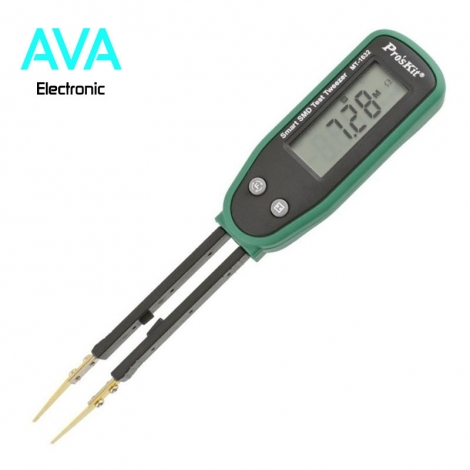

MT-1632 is a digital tester built for testing and troubleshooting SMD (Surface Mounted Device)
Tests Resistance, Diode Capacitance, Continuity Golden Tweezer Tip

۳ ۲/۳ digits 2999 counts display
Auto / Manual Range
Special handle stopper and V shape tip design for better grasping small parts
Designed with golden plated tweezer tip, provides precise and excellent sensitivity for highly accurate results.
Tests for resistance, capacitance, diode and continuity
Data hold and auto power off function
A extra pair tip and carrying case are included

Resistance : 300Ω/۳KΩ/۳۰K/300K/3MΩ±(۱%rdg+ 2dgt)30MΩ±(۱٫۲rd%+3dgt)
Resolution: 0.1Ω

Capacitance : 3nF/30nF/300nF/3uF/30uF±(۲٫۵%rdg+ 3dgt)300uF/3mF/30mF±(۳%rdg+ 3dgt)
Resolution : 1pF

Diode Test : Open voltage : 2.8V
Continuity : Testing Current : 2mA
Check :    Resistance < 30Ω, Buzzer will sound
Power Source : 1 x 3V CR2032 cell (not included)
Auto power off : 10 minutes after idling
Extra functions : Data Hold, Low battery indication
Dimension : 170x32x30mm
Accessories : Carrying case and 1 extra pair replacement tip
