Introduction

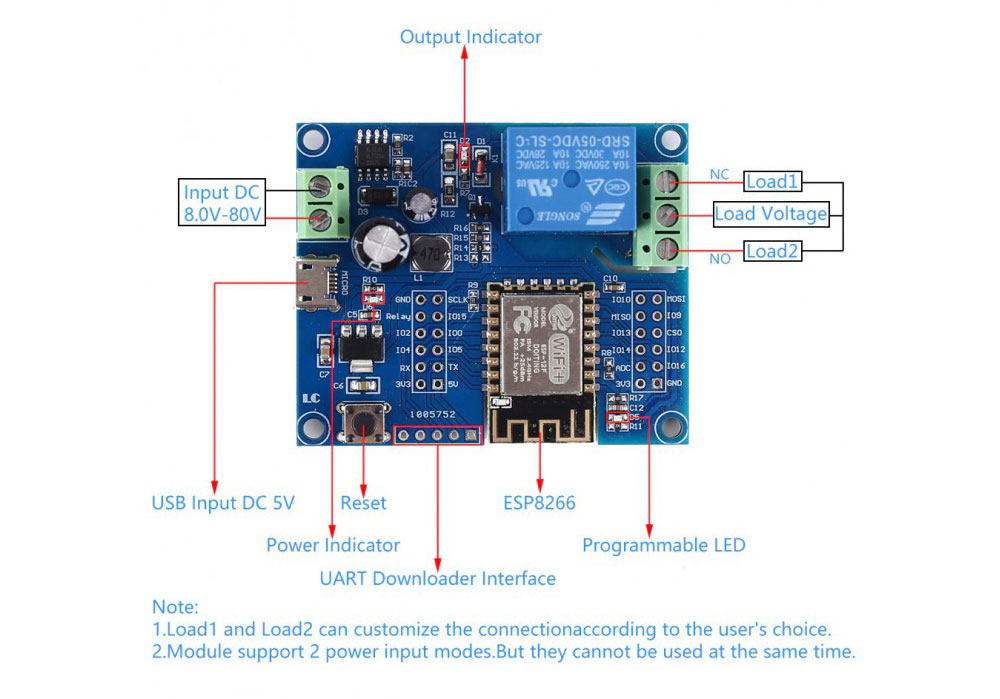

ESP826 Single way relay development board carry on ESP-12F WiFi module I/O port is fully extracted, supports DC8-80V/USB 5V, and other power supply methods. Supply Arduino development environment reference code, suitable for  ESP8266  secondary development learning, smart home wireless control, and other occasions.

Specification

Onboard mature and stable ESP-12F WiFi module, High capacity4M Byte Flash.
Reserve GPIO for ESP-12F
Reserve UART firmware update interface
Onboard WiFi module RST reset button
Onboard 1 channel 5V relay
Model: LC-Relay-ESP12-1R-D8
Work Voltage: DC8-80V/USB5V
WIFI IC: ESP8266
Communication Protocol: UART
Load voltage:AC 250V or DC 30V(Max)
Load current:10A(Max)
Work Temperature:-25℃~۸۵℃
Work Humidity:5%~95%RH
