Features:

Overcharge release voltage: 4.28V+/-0.05V.

Overdischarge detection voltage: 2.9V+/-0.05V.

Upper operating current: 8A.

Upper instantaneous current: 16A.

Static current: less than 10uA.

Charge voltage: 8.4V-9V.

Size: 41x8x2.2mm.

Packing included:2PCS.

Main function:

Overcharge protection, over discharge protection, short circuit protection, overcurrent protection.

The described power range is applicable to the following products: massager battery pack, LED lamp standby power supply, 12V electronic products, solar street lamp battery pack, monitoring standby power supply, and other products.

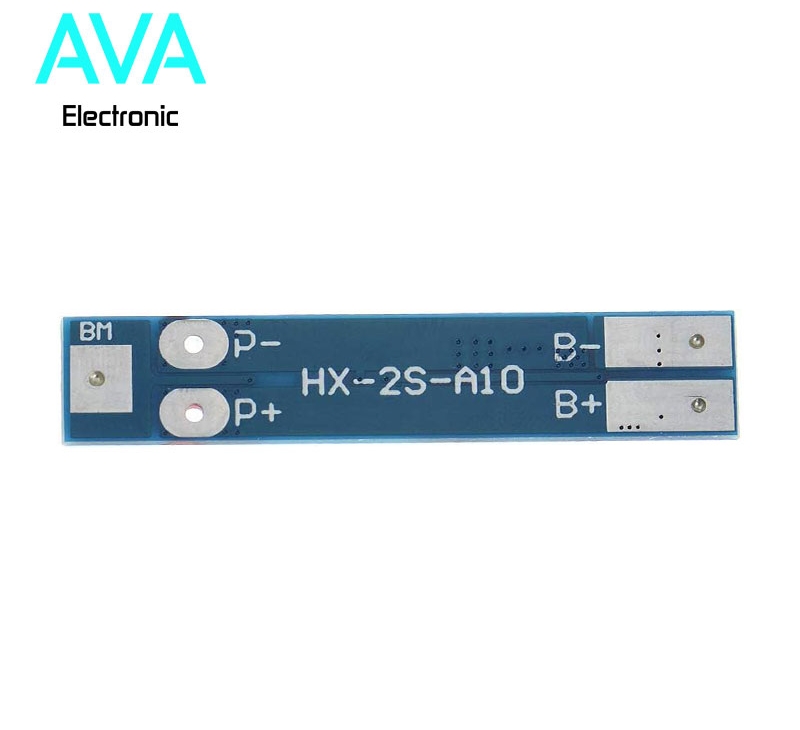

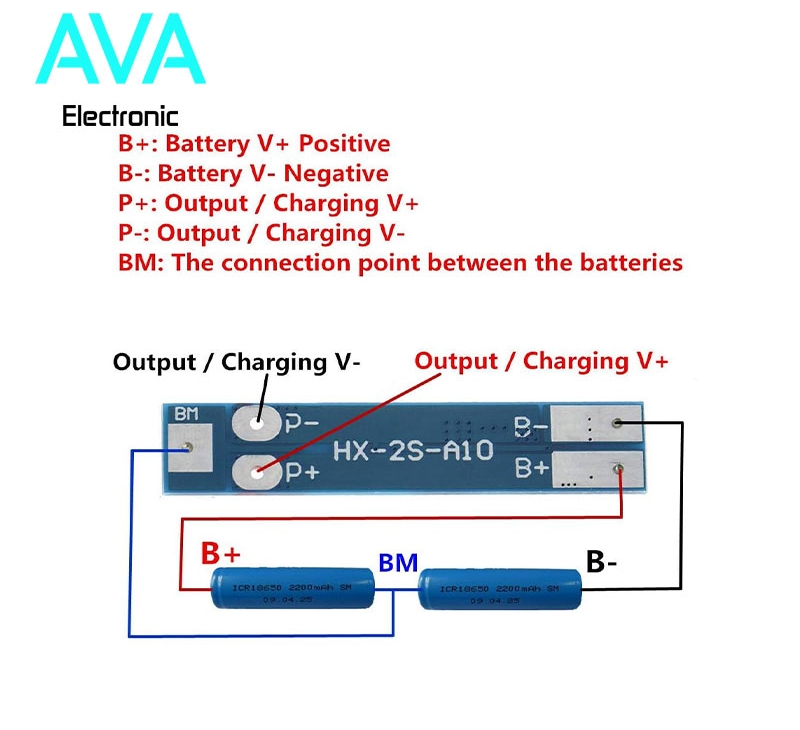

Wiring:

B+ : Connect to battery positive.

B- : Connect to battery negative.

MB: Connection point between battery 1 and battery 2.

P+: Positive pole for charging/discharging (common at charging/discharging end).

P- : Negative pole for charging/discharging end (common at charging/discharging end).
