SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save time for users to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked at any location and anytime with signal coverage.The module can be controlled via AT commands.
Features
- Quad-band 850/900/1800/1900MHz – Connect onto any global GSM network with any 2G SIM
- Fully-integrated GPS (MT3336 chipset with -165 dBm tracking sensitivity) that can be controlled and query over the same serial port
- Make and receive voice calls using a headset or an external 32Ω speaker + electret microphone
- Send and receive SMS messages
- Send and receive GPRS data (TCP/IP, HTTP, etc)
- PWM/Buzzer vibrational motor control
- AT command interface with “auto baud” detection
Specifications
- Quad-band 850/900/1800/1900MHz
- Programmable via AT commands
- Supports GSM, GPRS and GPS
- On-board Antenna interface for GSM, GPS and Bluetooth
- On-board LED indicator for power, status and network
- GPS Specifications

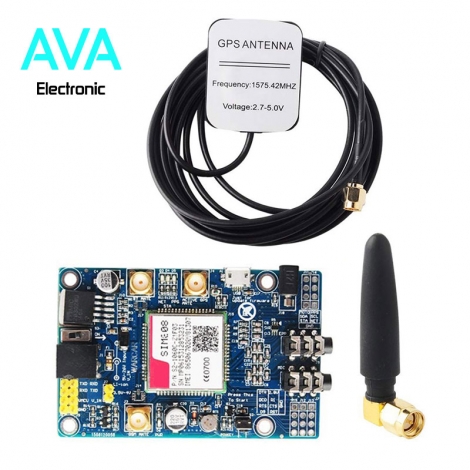

ماژول SIM808 به همراه آنتن GSM و GPS
